100W Barrier Gate System , IP54 Parking Garage Barrier

Name: 100W Barrier Gate System IP54 Parking Garage Barrier
Brand: SONGRUI
Price: 1 USD

China 100W Barrier Gate System , IP54 Parking Garage Barrier wholesale

Brand Name : SONGRUI

Model Number : BG5025

Certification : CE

Place of Origin : China

MOQ : 50 SETS

Price : Negotiable

Payment Terms : T/T

Delivery Time : 5-8 WORK DAYS

Power supply : AC110V-264V/47-63HZ

Motor Power : 100W

Machine Case Thickness : 2mm

No-load Speed : 3000r/min

Control Voltage : 24VDC/max.300mA

Service Life : 5-10 million times

Motor Speed without load : 3000r/min

Driving Method : servo motor+Planetary reducer

Protection Level : IP54

Contact Now

Servo Barrier Gate Intenrated Machine Barrier Gate System

Features:

1. 485 communication interface makes it easy to remote control the barrier gate and get the state feedback.

2. Through setting the DIP switch, users can choose operation mode and operation parameters, which can meet customer’s requirements for different functions to maximum.

3. High-sensitivity Auto-reverse function which can prevent incorrect operation and other crash or hitting accidents.

4. High-strength precision cast steel machine case, with outdoor metal powder electrostatic spraying surface treatment, waterproof and dustproof, IP class 54.

5. Four lines two colors LED display screen, users can input the contents to display.

6. HD license plate recognition camera with motorized zoom lens, one button adjustment, camera capturing distance far or near among 3M-8M.

7. Support offline function, for fixed user parking lot, no PC required.

8. The camera supports IP network interface, RS485 data transmission, and multiple trigger modes.

Product Specification:

Model		BGY3009	BG4014	BG5025	BG6035
Boom Length		≤ 3m	≤ 4m	≤ 5m	≤ 6m
Open/Close Time		0.9 sec	1.4 sec	2.5 sec	3.5 sec
Working Temperature		-40~+70 ℃
Relative Humidity		≤ 90%
Insulation Class		F
Protection Class		IP54
Power Supply		AC110-264V/47-63Hz
Barrier Gate	Working Voltage	DC24V
	Motor Power	100w
	No-load Speed	3000r/min
	Service Life	5-10 million times
	Driving Method	Servo Motor + Planetary Reducer
	Machine Case Thickness	2mm
	Machine Case Surface Treatment	Outdoor metal powder electrostatic spraying
	Remote Control Distance	≤100m (wide open area, sunny weather)
	Running Noise	＜60dB
License Plate Recognition Camera	Pixel	200W
	Network	TCP/IP Port
	Working Voltage	DC12V
	Resolution	1280×960
LED Display Screen	Display Size	304×304mm
	Resolution	64×32
	Specification	F3.75 double colors, four lines display
	Scan Method	1/16
	Interface Type	08
	Working Voltage	DC12V
Filling Light	Power	15W
	Working Voltage	AC220V
	Angle	45º
Vehicle Detector	Working Voltage	AC220V
	Working Frequency	20 KHz ~170 KHz
	Reaction Time	10ms
	Sensitivity	9 levels adjustable
Machine Case Size(W×D×H)		370 × 515 × 1580mm
Net Weight		60kg

100W Barrier Gate System , IP54 Parking Garage Barrier

Product Tags:

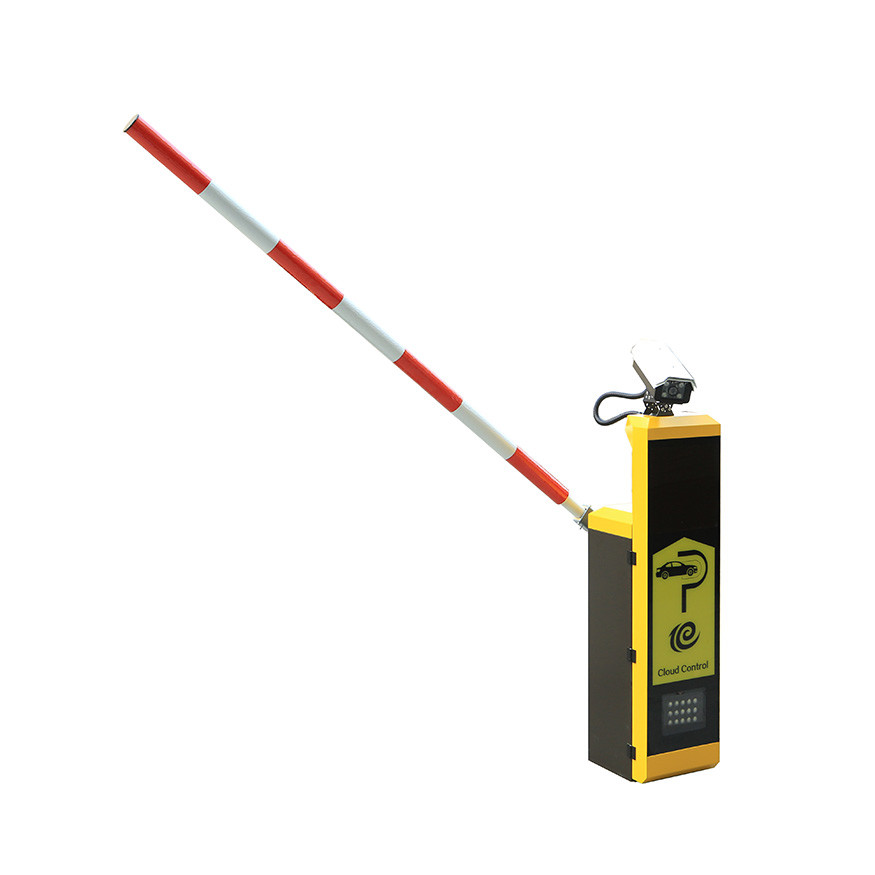

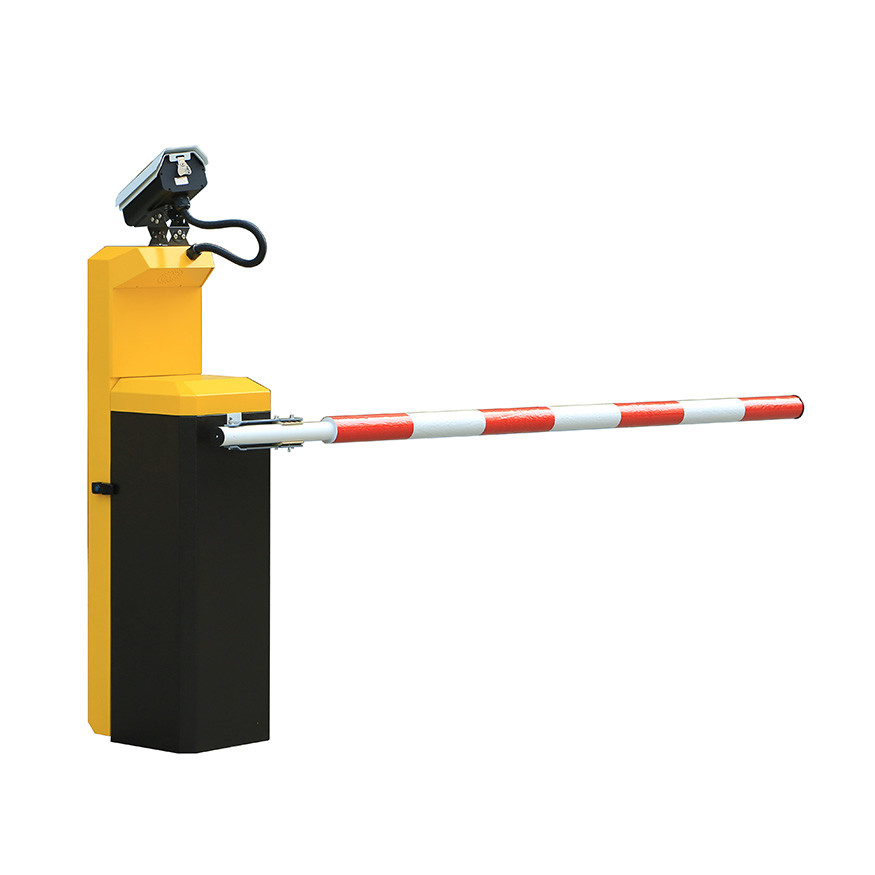

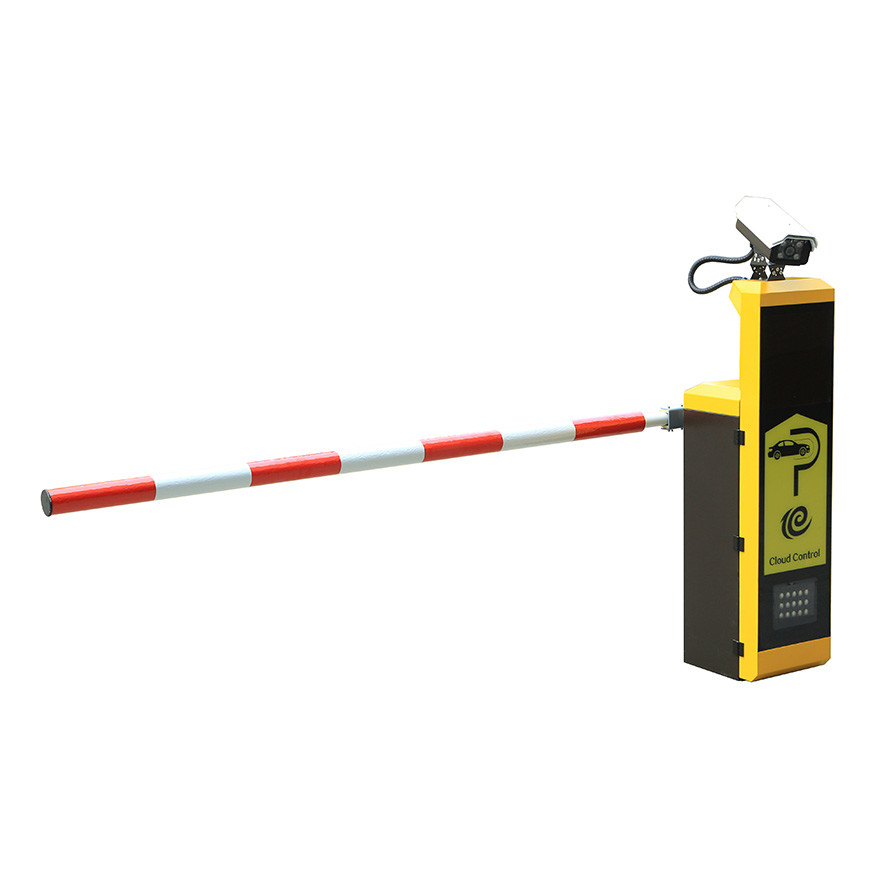

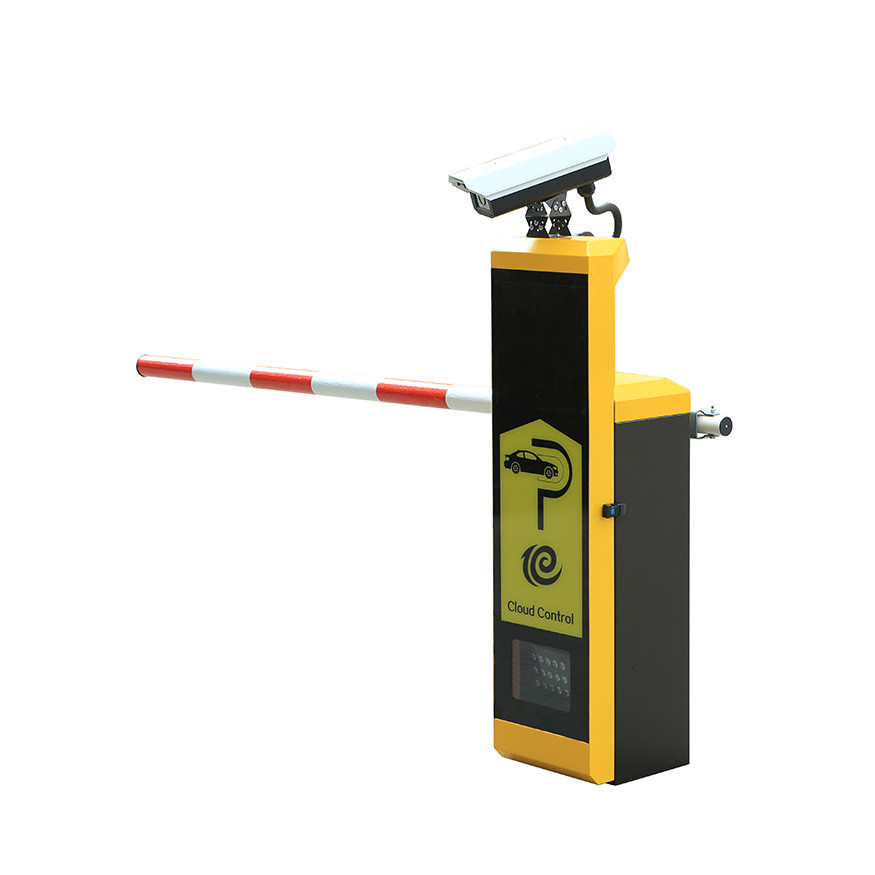

100W Barrier Gate System , IP54 Parking Garage Barrier Images
